Graphi-Bond 669 Graphite Adhesive

SKU: Graphi-Bond 669
Grade: ARMC-669
$101.70 to $1,400.40
$101.70 to $1,400.40
Units: Each
Availability: Usually ships in 3 business days
Inquire for other sizes and custom machining

Please select options before adding to cart

High temperature one-part graphite based adhesive. Excellent for oxidizing atmosphere. Bonds and seals graphite structures and molds in applications up to 1400°F (760°C).

Graphi-Bond 669 exhibits a dielectric strength of 105 volts per mil, torque strength of 26 ft-lbs, and coefficient of thermal expansion of 4.2 in/in/°F.

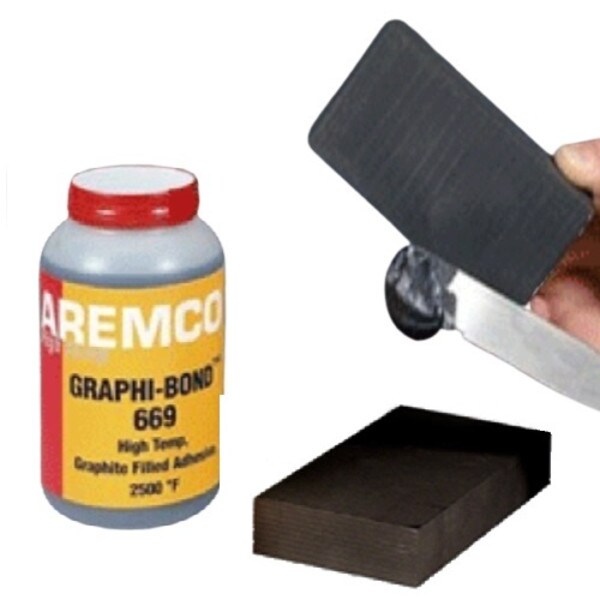

The product must be step cured at 200°F (93°C) for 2 hours. Applied in a thin coat using a brush, spatula or dispenser. The clearance between mating parts at operating temperature should be 2-8 mils (50-200 microns). Blistering may occur if the glue line is too thick or heating too rapid. On the picture Graphi-Bond 669 bonds graphite fixture.

Detailed Description

Graphi-Bond Comparison Chart

Part No.551-RN551-RN-MV669
ConsistencyHigh ViscosityMedium ViscosityLow Viscosity
Use Atmosphere Reducing/Vacuum Reducing/VacuumOxidizing
Bond Strength HighUltra-HighModerate
Max Temperature5400 ºF (2985 ºC)5400 ºF (2985 ºC)1400 ºF (760 ºC)
