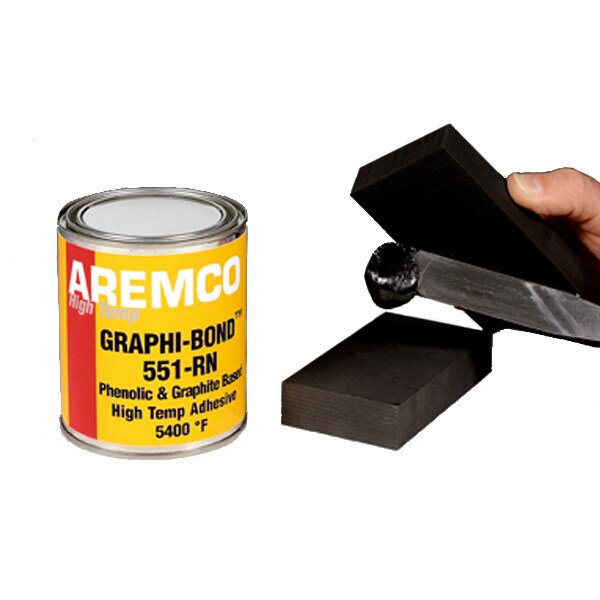

Graphi-Bond 551RN Graphite Adhesive

SKU: Graphi-Bond 551RN
Grade: ARMC-551RN
$124.20 to $196.55
$124.20 to $196.55
Units: Each
Availability: Usually ships in 3 business days
Inquire for other sizes and custom machining

Please select options before adding to cart

THIS PRODUCT CAN ONLY SHIP UPS GROUND WITHIN THE CONTINENTAL UNITED STATES

Graphi-Bond 551-RN is a single part, phenolic-bonded, graphite and fiber-reinforced, high temperature adhesive used to bond, fill and repair carbon-carbon and graphite components and structures used in reducing atmospheres to 5400°F (2982°C).

Graphi-Bond 551-RN is used typically to bond and patch carbon-carbon and graphite components such as brushes, RF susceptors, fixtures, electrodes, crucibles, furnace parts, metal-casting dies, and continuous casting dies. Due to its low coefficient of thermal expansion, 4.1 in/in/°F, which matches most grades of carbon and graphite, it is ideal for thermal cycling applications.

Graphi-Bond 551-RN is an easy-to-apply, dispensable adhesive that contains no asbestos or volatile organic compounds. After setting at room temperature for 1-2 hours and curing at 265°F (129°C) for 2-4 hours, it demonstrates exceptional moisture resistance and tensile-shear strength in the range of 1100 psi.


Bonding
  • Graphite Insulation
  • Carbon Brick, Foam & Felt
  • Carbon Fiber Composites
  • Graphite Rams & Punches
  • Graphite Site Tubes & Pour Spouts
  • Graphite Foil to Rigid Insulation
  • Graphite Foil to CFC bonding

Laminating, Repairing, Sealing
  • Carbon Fiber Composites
  • Graphite Trays, Dies, Jigs, Fixtures
  • Patch Holes & Scratches
  • Repair Susceptors
  • Seal Porosity

Detailed Description

Graphi-Bond Comparison Chart


Part No.551-RN551-RN-MV669
BinderPhenolicPhenolicSilicate
ConsistencyHigh ViscosityMedium ViscosityLow Viscosity
Use Atmosphere Reducing/Vacuum Reducing/VacuumOxidizing
Bond Strength HighUltra-HighModerate
Max Temperature5400 ºF (2985 ºC)5400 ºF (2985 ºC)1400 ºF (760 ºC)
