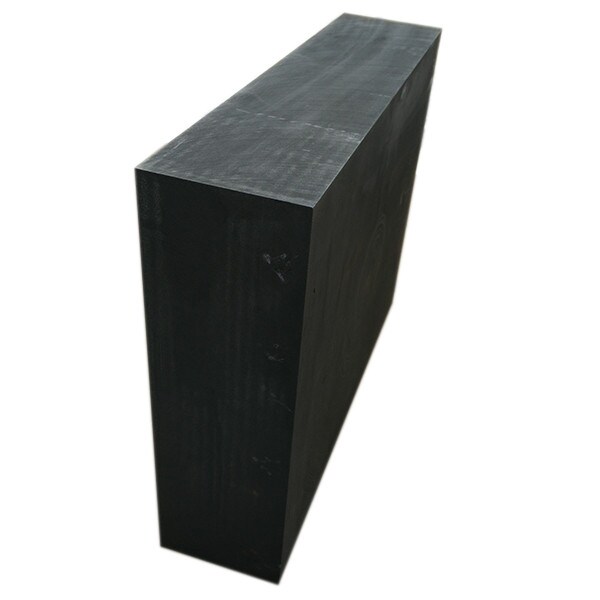

Very Fine Detail, Low Wear EDM Saw Cut Block, 4"H

SKU: EC17-BLOCK-4H
Grade: EC-17
$1,609.44 to $3,218.90
Back
$1,609.44 to $3,218.90

Width

Length 12"

Units: Each
Availability: Usually ships in 1 business days
Inquire for other sizes and custom machining

Please select options before adding to cart

Ultrafine grain premium isotropic graphite block. With uniform structure and an average grain size of 2 microns EC-17 offers the capability to EDM very fine detail with low electrode wear. EC-17's low porosity in addition to EDMing fine detail also makes it a choice grade for wire EDMing of electrodes. Tolerance: saw cut, +.125/-0
Height:4"
(10.16cm)
Width:6"
(15.24cm)
Length:12"
(30.48cm)

This item is suitable for making:
Ec-17 very fine detail, low wear edm electrodes
