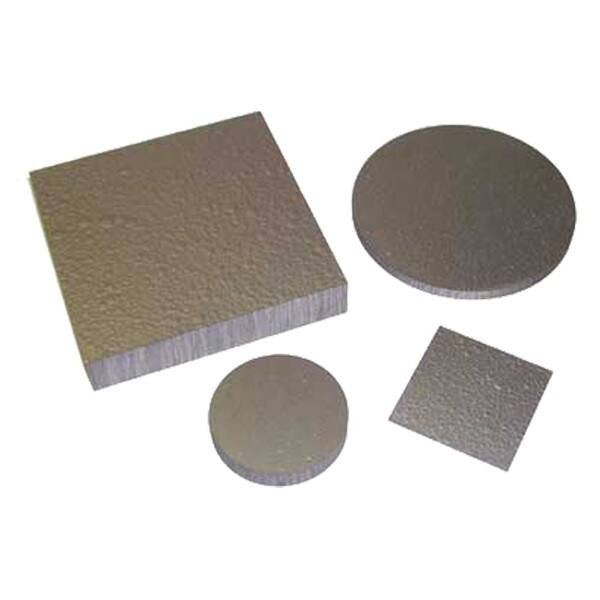

Pyrolytic Graphite disc, Substrate Nucleated, 4"DIA
.jpg?resizeid=2&resizeh=600&resizew=600)
SKU: PT001008
Grade: PG-SN
$2,144.31
Quantity Pricing
| 1 - 4 | 5 - 9 | 10 + |
|---|---|---|
| $2,144.31 | $1,929.88 | $1,715.45 |
Pyrolytic Graphite (Substrate Nucleated) disc manufactured by decomposition of a hydrocarbon gas at very high temperature in a vacuum furnace. The result is an ultra-pure product which is near theoretical density and extremely anisotropic.
The material is grown onto a substrate giving it a layered composition. This also means it has different properties in different planes. In the C plane (across its layers) it has low thermal conductivity, acting as an insulator. In the A-B plane (with the layers) it has very high thermal conductivity, acting as a superb conductor.
The material is grown onto a substrate giving it a layered composition. This also means it has different properties in different planes. In the C plane (across its layers) it has low thermal conductivity, acting as an insulator. In the A-B plane (with the layers) it has very high thermal conductivity, acting as a superb conductor.
Diameter:4"
(7.62cm)
Thickness:0.250"
(0.635cm)
This item is suitable for making:
Gas nozzles, Heat sinks, Ion implant hardware, Sputtering targets
Gas nozzles, Heat sinks, Ion implant hardware, Sputtering targets
