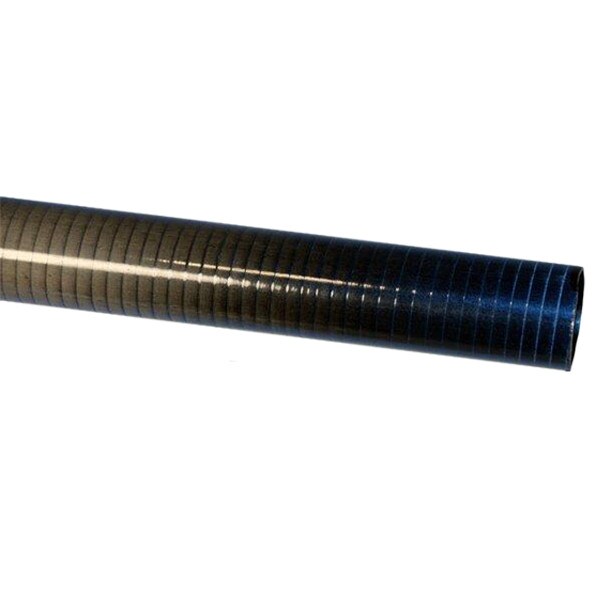

Carbon Fiber Roll Wrapped Tube, 0.292"OD
SKU: AE001810
Grade: GR-CFRWT
$25.90
Quantity Pricing
| 1 - 9 | 10 - 24 | 25 - 49 | 50 + |
|---|---|---|---|
| $25.90 | $23.54 | $21.90 | $20.26 |
A roll wrapped carbon tube is manufactured by wrapping unidirectional carbon fiber prepreg tape around a mandrel with the majority, but not all, of the carbon fiber running longitudinally. This type of construction offers a higher strength to weight ratio than is available in pultruded tubes. Typically used where thin walled, lightweight tubes are required to provide additional torsional stiffness and high strength.
MACHINING TIPS: To cut carbon fiber use an abrasive cutoff wheel or 32 teeth per inch hacksaw. Do not use a band saw.
Tolerance on ID: +/-.010"
Tolerance on OD: +/-.015"
Length tolerance: +/- .250”
Closer OD tolerances are available upon special order. Please contact us for details.
MACHINING TIPS: To cut carbon fiber use an abrasive cutoff wheel or 32 teeth per inch hacksaw. Do not use a band saw.
Tolerance on ID: +/-.010"
Tolerance on OD: +/-.015"
Length tolerance: +/- .250”
Closer OD tolerances are available upon special order. Please contact us for details.
Outside Diameter:0.295"
(0.749cm)
Inside Diameter:0.245"
(0.622cm)
Length:32.5"
(106.68cm)
This item is suitable for making:
Helicopter tail booms, Push rods, Wing blade spars, Wing joiner rods
Helicopter tail booms, Push rods, Wing blade spars, Wing joiner rods
