Zirconia Conical Crucible, 5ml
SKU: AD001035
Grade: AD-Z95
$136.96
Quantity Pricing
| 1 - 2 | 3 - 5 | 6 + |
|---|---|---|
| $136.96 | $123.41 | $109.66 |

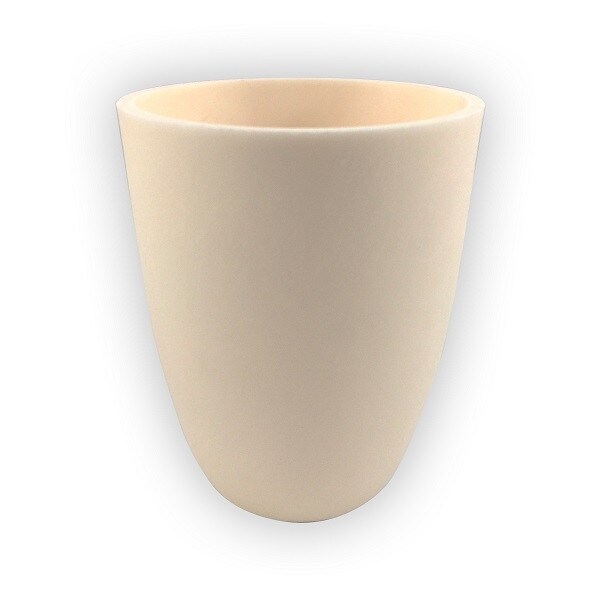

>95% Zirconia (ZrO2) Conical Crucible, 5 ml capacity. Provides excellent chemical inertness and corrosion resistance at temperatures to 2100°C. Offers unique ability to allow oxygen ions to move freely through the crystal structure above 600°C.
Heating and Cooling Instructions
Slow ramp rate and cooling rate are highly recommended to minimize the thermal shock; when increasing the temperature, special attention should be paid to two sensitive temperature periods: 100-300°C and 1,050-1,200°C during which the heating rate should not exceed 3°C per minute. The rate can be faster in other temperature ranges, but it is recommended to be less than 5°C per minute.
Taking the crucible directly out of furnace at high temperatures may cause cracks. If possible, take it out when the temperature is under 100°C.
Heating and Cooling Instructions
Slow ramp rate and cooling rate are highly recommended to minimize the thermal shock; when increasing the temperature, special attention should be paid to two sensitive temperature periods: 100-300°C and 1,050-1,200°C during which the heating rate should not exceed 3°C per minute. The rate can be faster in other temperature ranges, but it is recommended to be less than 5°C per minute.
Taking the crucible directly out of furnace at high temperatures may cause cracks. If possible, take it out when the temperature is under 100°C.
Capacity:5ml
Top ID:1.02"
(2.591cm)
Bottom ID:0.63"
(1.6cm)
Height:1.22"
(3.099cm)
