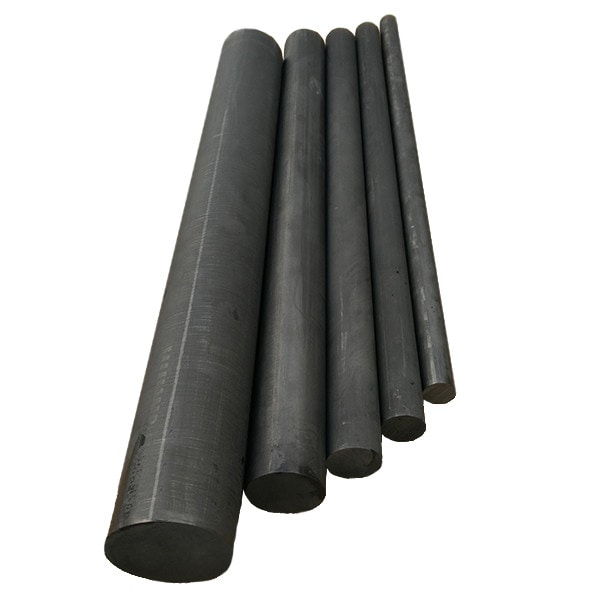

Very Fine Detail, Low Wear EDM Rod, 2.000"DIA x 12"L
SKU: MW001194
Grade: EC-17
$323.87
Quantity Pricing
1 - 2 | 3 - 4 | 5 + |
---|---|---|
$323.87 | $313.26 | $302.06 |
Ultrafine grain premium isotropic graphite rod. With uniform structure and an average grain size of 2 microns EC-17 offers the capability to EDM very fine detail with low electrode wear. EC-17's low porosity in addition to EDMing fine detail also makes it a choice grade for wire EDMing of electrodes. Tolerance: precision ground finish, +.005/-0
Outside Diameter:2"
(5.08cm)
Length:12"
(30.48cm)
This item is suitable for making:
Ec-17 very fine detail, low wear edm electrodes
Ec-17 very fine detail, low wear edm electrodes
