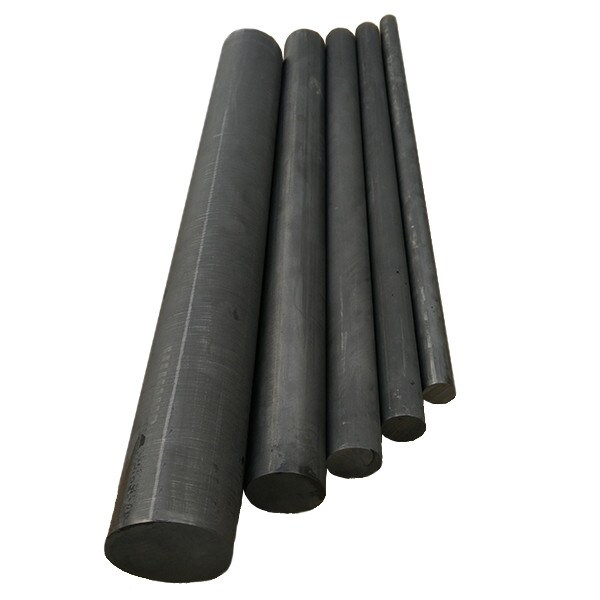

Very Fine Detail, Low Wear EDM Rod, 0.375"DIA x 12"L

SKU: MW001187
Grade: EC-17
$96.86

Quantity Pricing

1 - 23 - 45 +
$96.86$88.83$85.41
Back
$96.86
Units: 2/pack
Availability: Usually ships in 1 business days
Inquire for other sizes and custom machining
Ultrafine grain premium isotropic graphite rod. With uniform structure and an average grain size of 2 microns EC-17 offers the capability to EDM very fine detail with low electrode wear. EC-17's low porosity in addition to EDMing fine detail also makes it a choice grade for wire EDMing of electrodes. Tolerance: precision ground finish, +.005/-0
Outside Diameter:0.375"
(0.953cm)
Length:12"
(30.48cm)

This item is suitable for making:
Ec-17 very fine detail, low wear edm electrodes
