Very Fine Detail, Low Wear EDM Ground Plate, 0.125"H x 12"W x 12"L

SKU: MW001014
Grade: EC-17
$280.58

Quantity Pricing

1 - 45 - 910 +
$280.58$270.91$261.23
Back
$280.58
Units: Each
Availability: Usually ships in 1 business days
Inquire for other sizes and custom machining

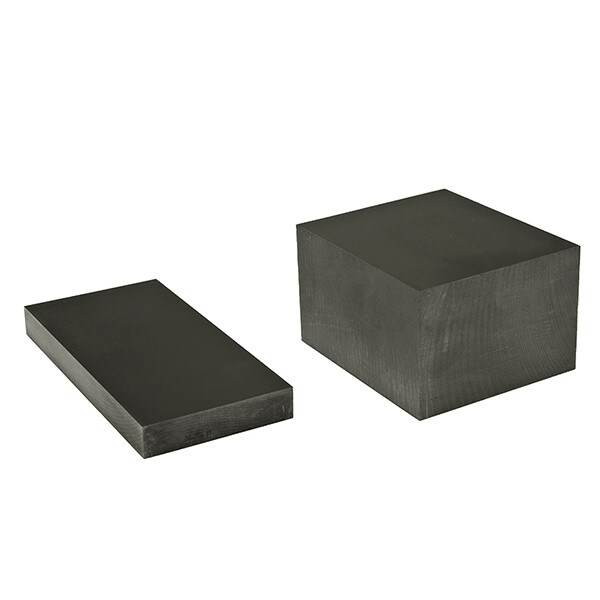

Ultrafine grain premium isotropic graphite plate. With uniform structure and an average grain size of 2 microns EC-17 offers the capability to EDM very fine detail with low electrode wear. EC-17's low porosity in addition to EDMing fine detail also makes it a choice grade for wire EDMing of electrodes. Tolerance: surface ground, +/-.001
Height:0.125"
(0.318cm)
Width:12"
(30.48cm)
Length:12"
(30.48cm)

This item is suitable for making:
Ec-17 very fine detail, low wear edm electrodes
