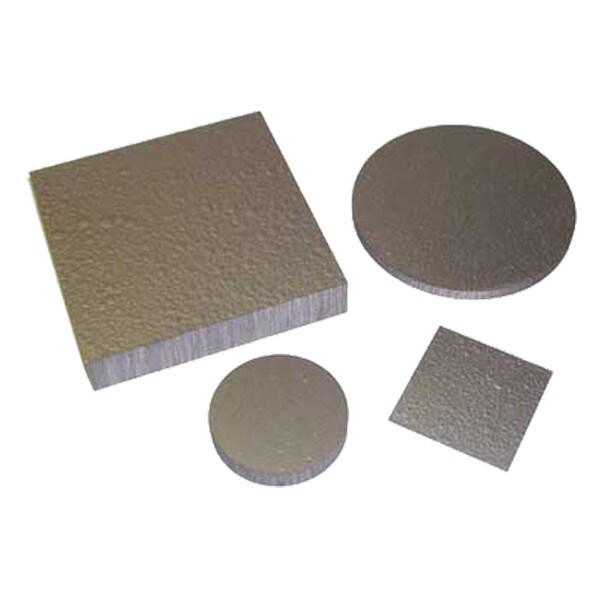

Pyrolytic Graphite disc, Substrate Nucleated, 1"DIA
SKU: PG-SN-DISC-1DIA
Grade: PG-SN
$360.26
Pyrolytic Graphite (Substrate Nucleated) disc manufactured by decomposition of a hydrocarbon gas at very high temperature in a vacuum furnace. The result is an ultra-pure product which is near theoretical density and extremely anisotropic.
The material is grown onto a substrate giving it a layered composition. This also means it has different properties in different planes. In the C plane (across its layers) it has low thermal conductivity, acting as an insulator. In the A-B plane (with the layers) it has very high thermal conductivity, acting as a superb conductor.
The material is grown onto a substrate giving it a layered composition. This also means it has different properties in different planes. In the C plane (across its layers) it has low thermal conductivity, acting as an insulator. In the A-B plane (with the layers) it has very high thermal conductivity, acting as a superb conductor.
Diameter:1"
(2.54cm)
Thickness:0.25"
(0.635cm)
This item is suitable for making:
Gas nozzles, Heat sinks, Ion implant hardware, Sputtering targets
Gas nozzles, Heat sinks, Ion implant hardware, Sputtering targets
