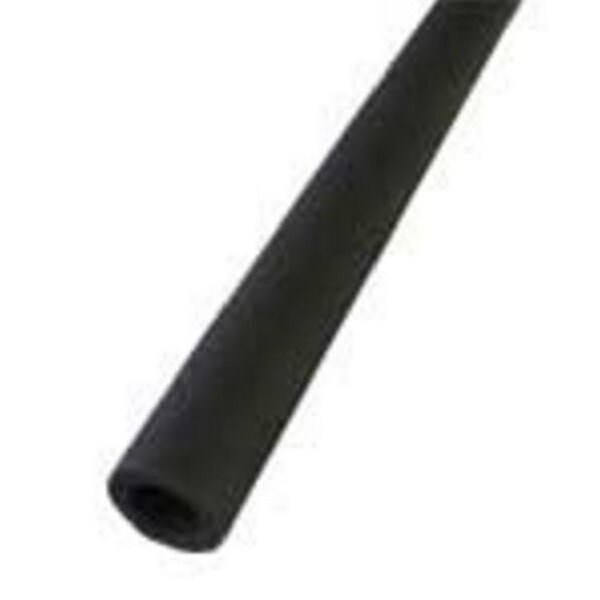

Purified Graphite Tube, 1.5"OD x 1"ID x 36"L

SKU: MT001102
Grade: GR008GP
$355.43

Quantity Pricing

12 - 2425 +
$355.43$318.01
Back
$355.43
Units: 2/pack
Minimum of 12 required
Availability: Usually ships in 3 business days
Inquire for other sizes and custom machining
Purified (less than 50 ppm) extruded graphite tube. All dimensions are nominal, as extruded. Allow up to 0.150" larger OD and 0.150 smaller ID. Typical curvature: +/-0.5% arc to cord or 0.5 inch over 100 inches.
Outside Diameter:1.5"
(3.81cm)
Inside Diameter:1"
(2.54cm)
Length:36"
(91.44cm)

This item is suitable for making:
Boats, Fluxing & injection tubes, Furnace parts, Heat exchangers, Heating elements
