Alumina High Form Crucible, 100ml

SKU: AD001009
Grade: AD-A996
$49.74

Quantity Pricing

1 - 910 - 2425 +
$49.74$44.68$39.79
$49.74
Units: Each
Availability: Usually ships in 2 business days
Inquire for other sizes and custom machining

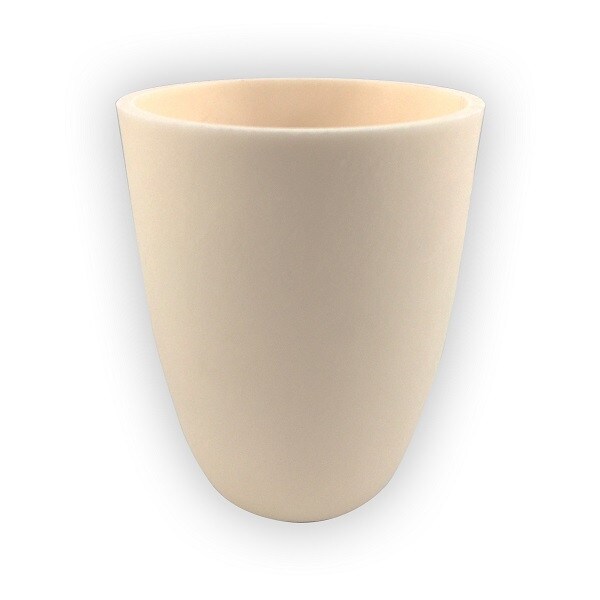

>99.6% Alumina (Al2O3) High Form Crucible, 100 ml capacity. Inert to hydrogen, carbon and refractory metals; can be used at operating temperatures to 1750°C in both oxidizing and reducing atmospheres.

Heating and Cooling Instructions
Alumina is sensitive to thermal shock. Try to warm up the furnace chamber slowly. Heating rate of 150-300°C per hour is recommended for the first 1-1.5 hours to reduce the impact of thermal shock.
Lower the temperature as gradually as possible. Cooling down rate is often half of the heating rate (75-150°C per hour). If possible, arrange for consecutive heating of furnace to maintain a hot crucible. If taking the crucibles out of furnace into room temperature to pour the melted material, try to make the process as gradual as possible.
Capacity:100ml
Top ID:2.28"
(5.791cm)
Bottom ID:1.38"
(3.505cm)
Height:2.05"
(5.207cm)

This item is suitable for making:
Ceramic crucibles and trays
