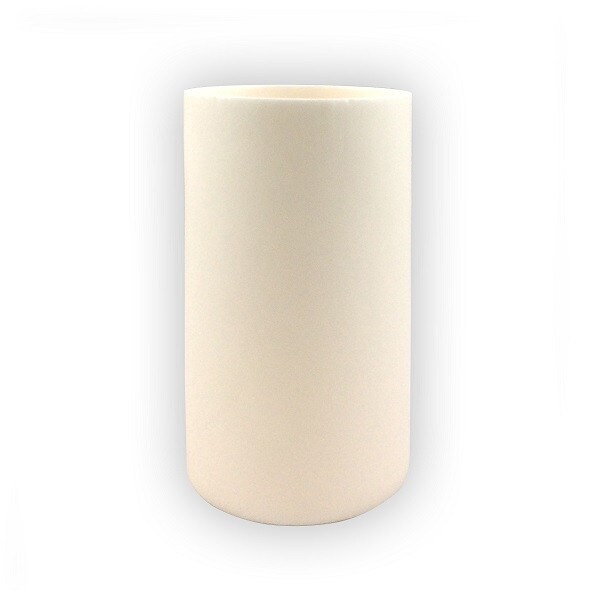

Alumina Cylindrical Crucible, 5ml

SKU: AD001003
Grade: AD-A996
$21.58

Quantity Pricing

1 - 910 - 2425 +
$21.58$19.42$17.26
$21.58
Units: Each
Availability: Usually ships in 2 business days
Inquire for other sizes and custom machining
>99.6% Alumina (Al2O3) Cylindrical Crucible, 5 ml capacity. Inert to hydrogen, carbon and refractory metals; can be used at operating temperatures to 1750°C in both oxidizing and reducing atmospheres.

Heating and Cooling Instructions
Alumina is sensitive to thermal shock. Try to warm up the furnace chamber slowly. Heating rate of 150-300°C per hour is recommended for the first 1-1.5 hours to reduce the impact of thermal shock.
Lower the temperature as gradually as possible. Cooling down rate is often half of the heating rate (75-150°C per hour). If possible, arrange for consecutive heating of furnace to maintain a hot crucible. If taking the crucibles out of furnace into room temperature to pour the melted material, try to make the process as gradual as possible.
Capacity:5ml
Diameter:0.748"
(1.9cm)
Height:1.02"
(2.591cm)

This item is suitable for making:
Ceramic crucibles and trays
