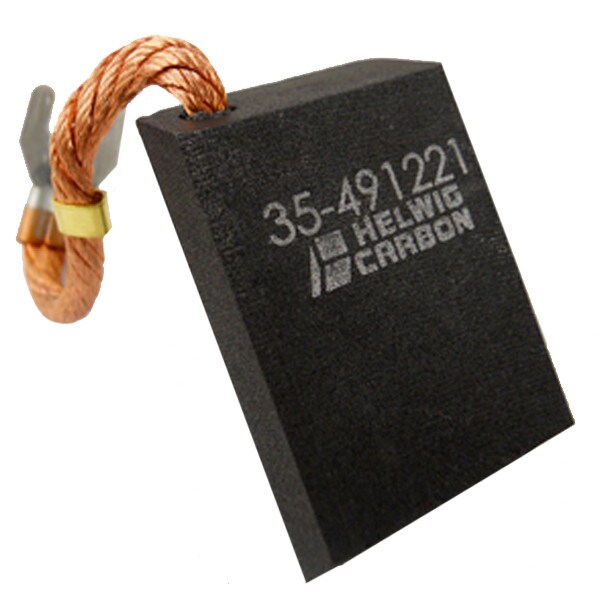

35-491221 Carbon Brush 0.492" x 1.26" x 2"
SKU: 35-491221
Grade: H45
$29.59
Quantity Pricing
| 4 - 23 | 24 - 47 | 48 + |
|---|---|---|
| $29.59 | $25.14 | $23.65 |
in stock
FREE UPS GROUND SHIPPING!
Application: Industrial Brush, Elevator
OEM P/N: 2101436, 2900C35G01, D97567, L30, LRS2, X38X1, X38X14, X38X5, X38XS1H01, X38XS1H05, X38XS1H14
OEM P/N: 2101436, 2900C35G01, D97567, L30, LRS2, X38X1, X38X14, X38X5, X38XS1H01, X38XS1H05, X38XS1H14
Style #:Q36
Brush Thickness:0.492"
Brush Width:1.26"
Brush Length:2"
Shunt Length:3"
Bevel:25/25
Terminal:Hole Terminal 5/32 Tapped
Special:Concave Radius (inches) = 1.5
Category:Tamped Single Shunt Brush
Detailed Description
| Equipment manufacturer | Application | Model | Power | Volts | Amps | RPM | Brushes required |
|---|---|---|---|---|---|---|---|
| Westinghouse | Motor | CW200L4 | 25 | 230 | 96 | 1750 | 8 |
| Westinghouse | Motor | CW250L6 | 40 | 230 | 147 | 1150 | 8 |
