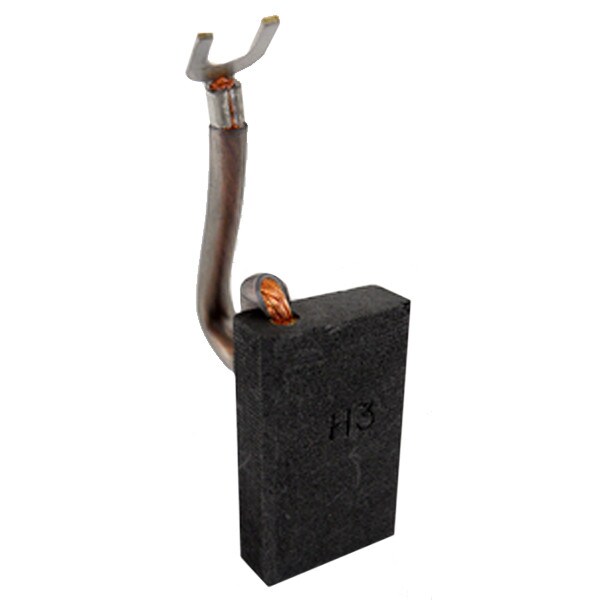

35-317811 Carbon Brush 0.315" x 0.787" x 1.25" (8mm x 20mm x 32mm)
SKU: 35-317811
Grade: H3
$23.24
Quantity Pricing
| 5 - 23 | 24 - 47 | 48 + |
|---|---|---|
| $23.24 | $19.75 | $18.61 |
in stock
FREE UPS GROUND SHIPPING!
Application: Industrial Brush, Elevator
Motor: LeRoy Somer
Motor: LeRoy Somer
Style #:Q20
Brush Thickness:0.315"
(8mm)
Brush Width:0.787"
(20mm)
Brush Length:1.25"
(32mm)
Shunt Length:2.75"
Bevel:0/0
Terminal:Hole Terminal 6/32
Special:Concave Radius (inches) = 2 Insulated Shunts
Category:Tamped Single Shunt Brush
Detailed Description
| Equipment manufacturer | Application | Model | Power | Volts | Amps | RPM | Brushes required |
|---|---|---|---|---|---|---|---|
| Leroy-Somer | Motor | C180L4 / 286 | 15 | 240 | 53 | 1150 | 8 |
