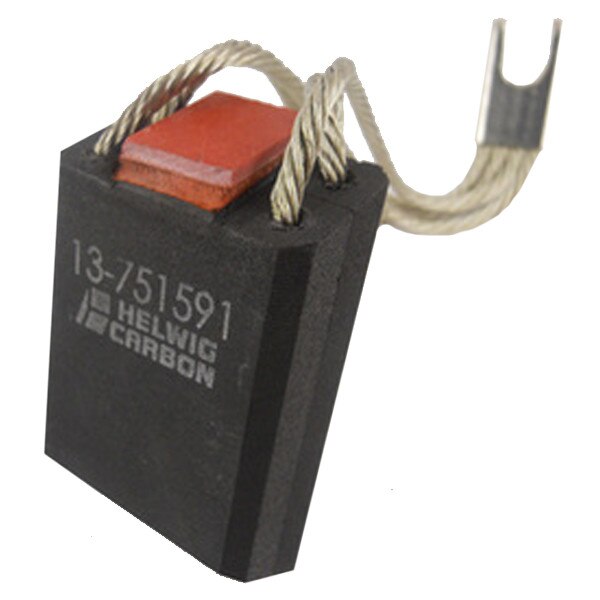

13-751591 Carbon Brush 0.75" x 1.5" x 2.5"
SKU: 13-751591
Grade: H45
$101.70
Quantity Pricing
| 1 - 23 | 24 - 47 | 48 + |
|---|---|---|
| $101.70 | $61.61 | $57.98 |
in stock
FREE UPS GROUND SHIPPING!
Application: Industrial Brush, Paper Mill
Motor: Reliance
OEM P/N: 207C2991P01, 25C10712P01, 25C7954P04, 25C7954P08, 3141PF
Motor: Reliance
OEM P/N: 207C2991P01, 25C10712P01, 25C7954P04, 25C7954P08, 3141PF
Style #:2Q39
Brush Thickness:0.75"
Brush Width:1.5"
Brush Length:2.5"
Shunt Length:4"
Bevel:20/30
Terminal:Cap with ears to keep the cap from turning in the holder
Category:Tamped Multi-Section Brush
Detailed Description
| Equipment manufacturer | Application | Model | Power | Volts | Amps | RPM | Brushes required |
|---|---|---|---|---|---|---|---|
| Reliance | DC MOTOR | 681ATS | 150 | 500 | 250 | 400 | 8 |
| Reliance | DC MOTOR | 584AFT | 300 | 500 | 480 | 1150 | 12 |
| Reliance | DC MOTOR | 584ATS | 300 | 500 | 0 | 1150 | 12 |
| Reliance | DC MOTOR | 681AT | 400 | 500 | 637 | 1150 | 16 |
