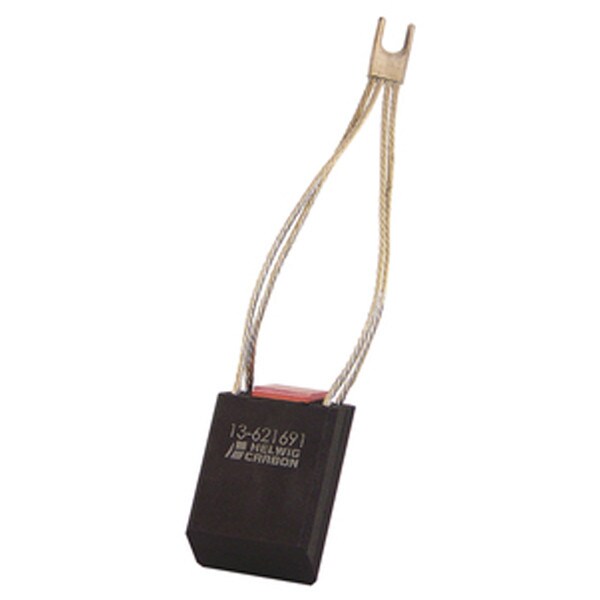

13-621691 Carbon Brush 0.625" x 1.625" x 2.375"
SKU: 13-621691
Grade: H45
$101.70
Quantity Pricing
| 1 - 23 | 24 - 47 | 48 + |
|---|---|---|
| $101.70 | $62.03 | $58.40 |
in stock
FREE UPS GROUND SHIPPING!
Application: Industrial Brush, Paper Mill
Motor: Reliance
OEM P/N: 25C9223P06, 3141WP, 3141XA, 3141XD, 61045516, J36534, RE41XA
Motor: Reliance
OEM P/N: 25C9223P06, 3141WP, 3141XA, 3141XD, 61045516, J36534, RE41XA
Style #:2Q39
Brush Thickness:0.625"
Brush Width:1.625"
Brush Length:2.375"
Shunt Length:4.75"
Bevel:20/30
Terminal:Slotted 9/32
Special:Red Top Tinned Shunts Insulated Shunts
Category:Tamped Multi-Section Brush
Detailed Description
| Equipment manufacturer | Application | Model | Power | Volts | Amps | RPM | Brushes required |
|---|---|---|---|---|---|---|---|
| Reliance | DC MOTOR | B5010ATZ | 75 | 500 | 122 | 300 | 4 |
| Reliance | DC MOTOR | B50510 ATZ TR | 75 | 500 | 122 | 300 | 4 |
| Reliance | DC MOTOR | B5010ATZ TR | 100 | 500 | 165 | 300 | 4 |
| Reliance | DC MOTOR | B506ATZ | 200 | 500 | 0 | 1750 | 0 |
| Reliance | DC MOTOR | B507ATZ TR | 200 | 500 | 322 | 850 | 8 |
| Reliance | DC MOTOR | 508ATZ TR | 250 | 500 | 403 | 850 | 12 |
| Reliance | DC MOTOR | B507ATZ | 250 | 500 | 396 | 1150 | 12 |
| Reliance | DC MOTOR | B509ATZ | 300 | 500 | 472 | 1150 | 12 |
