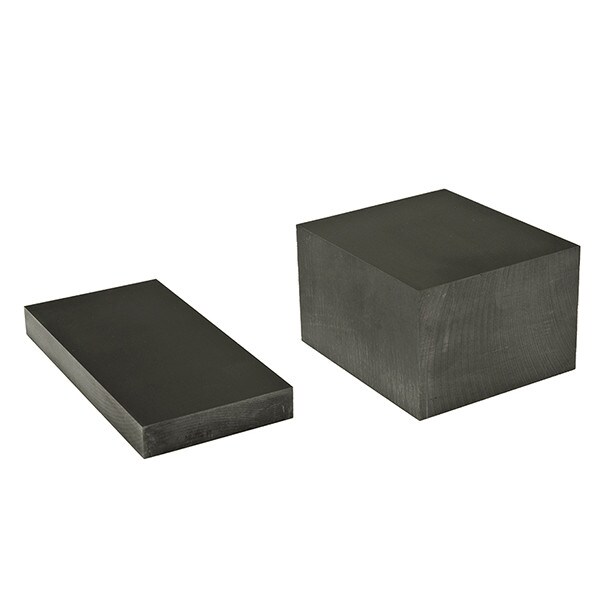

Very Fine Detail, Low Wear EDM Ground Plate, 1.500"H x 12"W x 12"L

SKU: MW001183
Grade: EC-17
$1,701.44

Quantity Pricing

1 - 45 - 910 +
$1,701.44$1,642.77$1,584.09
Back
$1,701.44
Units: Each
Availability: Usually ships in 1 business days
Inquire for other sizes and custom machining
Ultrafine grain premium isotropic graphite plate. With uniform structure and an average grain size of 2 microns EC-17 offers the capability to EDM very fine detail with low electrode wear. EC-17's low porosity in addition to EDMing fine detail also makes it a choice grade for wire EDMing of electrodes. Tolerance: surface ground, +/-.001
Height:1.5"
(3.81cm)
Width:12"
(30.48cm)
Length:12"
(30.48cm)

This item is suitable for making:
Ec-17 very fine detail, low wear edm electrodes
