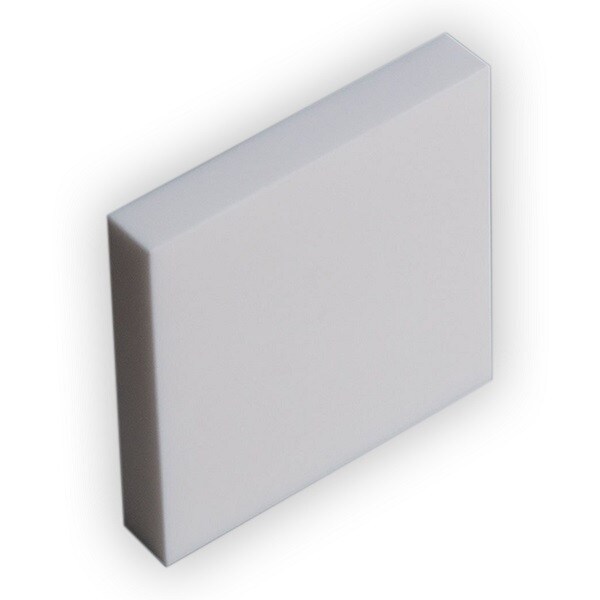

MACOR® Plate, 0.0625"TH

SKU: MACOR-PLATE-0.0625TH
Grade: MACOR
$181.43 to $725.73
$181.43 to $725.73

Width

Length

Units: Each
Availability: Usually ships in 2 business days
Inquire for other sizes and custom machining

Please select options before adding to cart

MACOR® Machinable Glass Ceramic (MGC) has a continuous use temperature of 800°C and a peak temperature of 1000°C. Its coefficient of thermal expansion readily matches most metals and sealing glasses. It is non-wetting, exhibits zero porosity, and unlike ductile materials, won't deform. It is an excellent insulator at high voltages, various frequencies, and high temperatures. It is a clean material with zero porosity and no out-gassing.
Plate thickness tolerance: +.015" / -.000"

Machining tolerances: detail machining to .0005"; surface finish of less than 20µin and polishing to a smoothness of 0.5µin.-AA.
Thickness:0.063"
(0.159cm)
Width:12"
(30.48cm)
Length:12"
(30.48cm)

This item is suitable for making:
Electric and thermal insulators, Electroni
