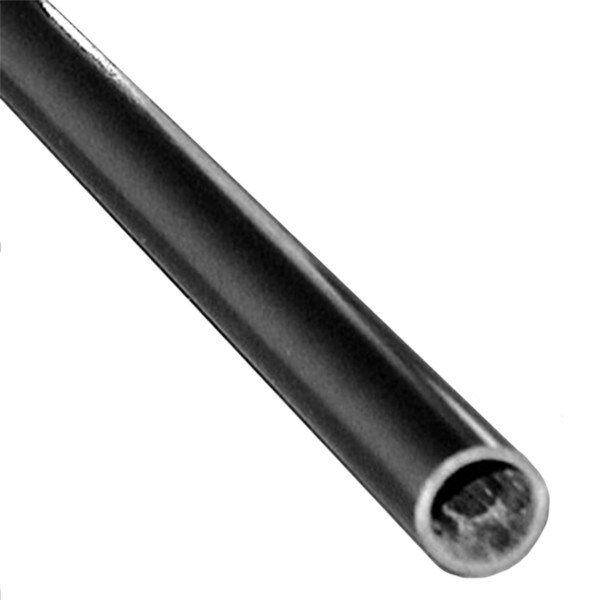

Carbon Fiber Tube, 0.281"OD

Grade: GR-CFR
$24.46 to $38.47
$24.46 to $38.47

Inside DIA 0.186"

Units: Each
Availability: Usually ships in 4 business days
Inquire for other sizes and custom machining

Please select options before adding to cart

Pultruded carbon fiber tube is the ultimate push rod since it contains 95% unidirectional carbon fiber running longitudinally and is covered with a light glass scrim. This design offers a high stiffness to weight ratio and makes this tube ideal for 1/4 scale aircraft pushrods, and slope soarer and helicopter tail booms, as well as reinforcement rods in light weight constructions such as model cars, musical instruments, trade show presentations, etc.
MACHINING TIPS: To cut carbon fiber use an abrasive cutoff wheel or 32 teeth per inch hacksaw. Do not use a band saw.
Tolerance on ID: +/-.015"
Tolerance on OD: +/-.005"
Length tolerance: +/- .250”
Outside Diameter:0.281"
Inside Diameter:0.186"

This item is suitable for making:
Helicopter tail booms, Model cars parts, Musical instruments reinforcement, Push rods, Slope soarer
