Very Fine Detail, Low Wear EDM Rod, 1.250"DIA x 12"L

SKU: MW001192
Grade: EC-17
$175.48

Quantity Pricing

1 - 23 - 45 +
$175.48$169.74$163.68
$175.48
Units: Each
Availability: Usually ships in 1 business days
Inquire for other sizes and custom machining

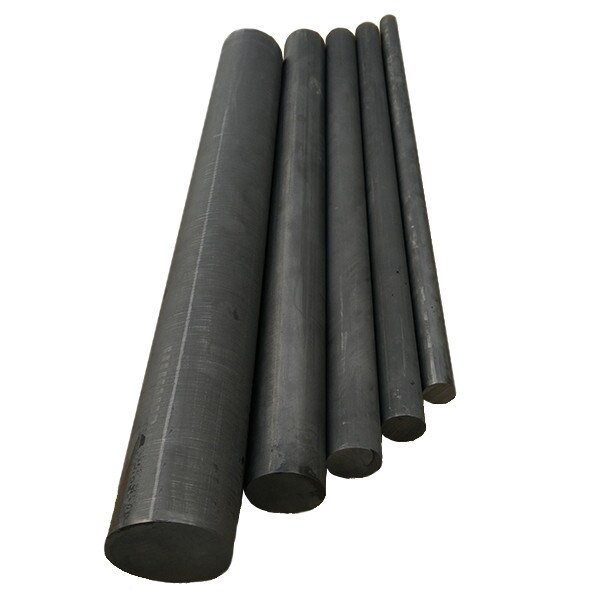

Ultrafine grain premium isotropic graphite rod. With uniform structure and an average grain size of 2 microns EC-17 offers the capability to EDM very fine detail with low electrode wear. EC-17's low porosity in addition to EDMing fine detail also makes it a choice grade for wire EDMing of electrodes. Tolerance: precision ground finish, +.005/-0
Outside Diameter:1.25"
(3.175cm)
Length:12"
(30.48cm)

This item is suitable for making:
Ec-17 very fine detail, low wear edm electrodes
