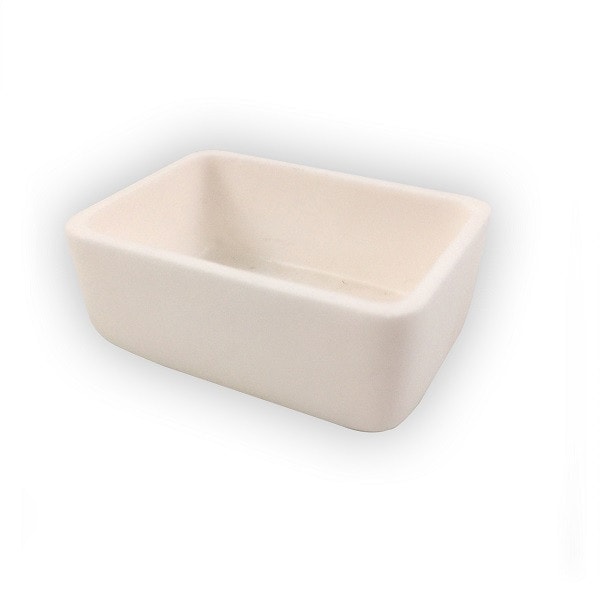

Alumina Rectangular Tray, 150ml
SKU: AD001023
Grade: AD-A996
$122.38
Quantity Pricing
| 1 - 9 | 10 - 24 | 25 + |
|---|---|---|
| $122.38 | $110.37 | $97.90 |
>99.6% Alumina (Al2O3) Rectangular Tray, 150 ml capacity. Inert to hydrogen, carbon and refractory metals; can be used at operating temperatures to 1750°C in both oxidizing and reducing atmospheres.
Heating and Cooling Instructions
Alumina is sensitive to thermal shock. Try to warm up the furnace chamber slowly. Heating rate of 150-300°C per hour is recommended for the first 1-1.5 hours to reduce the impact of thermal shock.
Lower the temperature as gradually as possible. Cooling down rate is often half of the heating rate (75-150°C per hour). If possible, arrange for consecutive heating of furnace to maintain a hot crucible. If taking the crucibles out of furnace into room temperature to pour the melted material, try to make the process as gradual as possible.
Heating and Cooling Instructions
Alumina is sensitive to thermal shock. Try to warm up the furnace chamber slowly. Heating rate of 150-300°C per hour is recommended for the first 1-1.5 hours to reduce the impact of thermal shock.
Lower the temperature as gradually as possible. Cooling down rate is often half of the heating rate (75-150°C per hour). If possible, arrange for consecutive heating of furnace to maintain a hot crucible. If taking the crucibles out of furnace into room temperature to pour the melted material, try to make the process as gradual as possible.
Capacity:150ml
Height:1.18"
(2.997cm)
Width:2.56"
(6.502cm)
Length:3.56"
(9.042cm)
