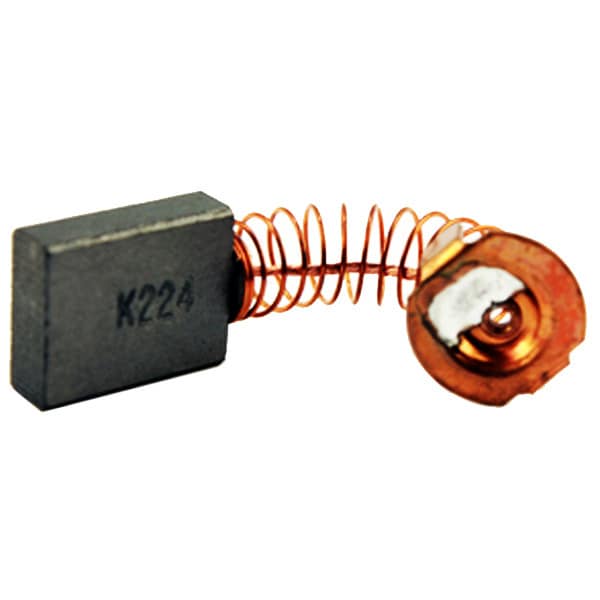

30-236341 Carbon Brush 0.236" x 0.63" x 0.875" (6mm x 16mm x 22mm)

SKU: 30-236341
Grade: K224
$8.01

Quantity Pricing

8 - 2324 - 4748 +
$8.01$6.81$6.41
$8.01
Units: Each
Minimum of 8 required
Availability: Usually ships in 1 business days
Inquire for other sizes and custom machining

FREE UPS GROUND SHIPPING!

Application: Fractional HP Brush
Motor: Fanuc
Style #:Q105
Brush Thickness:0.236"
(6mm)
Brush Width:0.63"
(16mm)
Brush Length:0.875"
(22mm)
Shunt Length:1.125"
Bevel:0/0
Terminal:Slotted 7/32
Special:Concave Radius (inches) = 2.5 Insulated Shunts
Category:Tamped with Spring Brush
